Smax BaseBend

Stable drive, precise positioning, high cost-efficiency.

NC torsion bar pressbrake

Smax BaseBend

NC press Brake is a competitiveprice point. Easy to install, easy to operate,easy to maintain after sale. Theseadvantages are the use of servo motor driveY axis and X axis travel, high positioning,fast speed, in order to meet customerrequirements can increase the servo controlY1 and Y2, more flexibility, high advantage

The torsion axis press brake adopts a torsion axis synchronous transmission structure, featuring stable operation, precise positioning, easy commissioning and operation, low maintenance cost and high cost performance. With a compact structure and small floor space, it is ideal for batch sheet metal bending processing of conventional parts in SMEs, and well-suited for the processing of thin plates and standard-shaped workpieces.

Standard Equipment

Request information

Integral full steel plate welding
Annealing for internal stress relief
Reinforced widened slide block, double guide rails
Full closed-loop electro-hydraulic servo sync control system
High-precision guide system
Overload relief safety protection

Integral full steel plate welding

The machine body adopts integral full steel plate welding technology; the seamless design maximizes structural rigidity with strong anti-vibration and anti-deformation capabilities, resisting vibration and deformation during operation and consistently ensuring processing stability and precision.

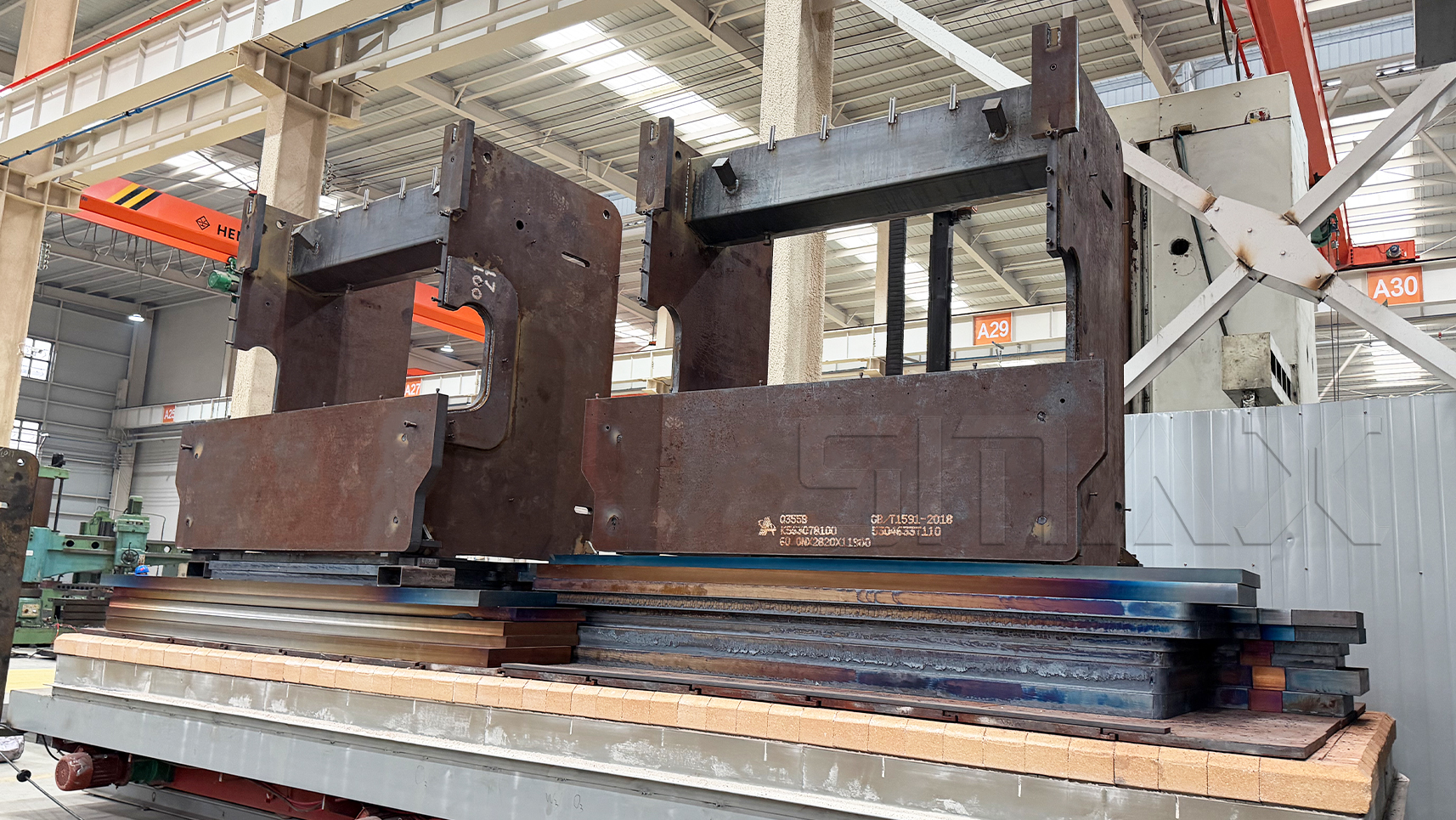

Stress relief via annealing process

The frame is professionally treated with an annealing process to effectively eliminate internal residual stress from welding, fundamentally eliminating the risk of frame deformation, greatly enhancing structural stability. It ensures the frame is free from warpage and deformation during long-term operation, with consistent and stable processing precision.

Coated with premium paint

The whole machine surface is coated with selected high-quality industrial special paint and applied through professional spraying technology. The paint film is dense and uniform with strong adhesion, featuring excellent anti-corrosion, rust-proof and scratch-resistant performance, and can effectively resist erosion by moisture, dust, oil stains and other pollutants in industrial environments.

Reinforced and widened slide block design

Thickened and widened slide block design enhances structural rigidity and pressure-bearing capacity, maximizes the dispersion of machining pressure, minimizes slide block deflection, avoids machining precision deviation caused by slide block deformation, and ensures the accuracy and stability of bending operations.

Universal upper die mounting face

Equipped with a universal upper die mounting surface, it is compatible with mainstream specifications of bending upper dies on the market, which can meet the clamping and positioning requirements of various dies to the maximum extent. It features strong clamping adaptability and high positioning accuracy, effectively reducing the difficulty of die replacement and debugging and improving die change efficiency.

Throat "C" shaped plate mechanism

A C-shaped plate mechanism at the machine throat accurately detects the upper and lower die distance during bending, dynamically controls die alignment, prevents dimensional errors from die distance deviation, and ensures the accuracy and forming consistency of bent workpieces.

Clear and intuitive display of oil level height

Intuitive visual oil level display, real-time oil status check without complex operation, convenient timely refueling, effectively preventing oil shortage faults for stable equipment operation and easy maintenance.
